The Pyro Ultra is a next-generation wireless video transmission system designed for professional production environments. Featuring true 4K60 transmission, ultra-low latency, and unlimited receiver connectivity, it delivers exceptional flexibility and performance on set.

Powered by Hollyland’s proprietary TWiFi technology, Pyro Ultra ensures stable, long-range transmission with seamless integration across the entire Pyro ecosystem.

Key Features

Unlimited Monitoring Capability

• One transmitter connects to unlimited receivers
• Stable performance recommended for up to 20 receivers
• Ideal for large-scale productions and multi-crew setups

True 4K60 Video Transmission

• Supports 4K60 video at up to 12 Mbps via HDMI
• Delivers sharp, cinematic image quality with excellent detail

Ultra-Low Latency (Focus Mode)

• Latency as low as 20ms
• Designed for precise focus pulling and real-time monitoring

Long-Range Transmission

• Up to 1.5 km (4,900 ft) line-of-sight
• Automatic frequency hopping for stable, interference-free signal

Broadcast Mode

• Enables real-time monitoring on unlimited receivers
• Standard mode supports up to 6 devices (4 RX + 2 apps)

Advanced Technology

TWiFi Transmission Technology

• Combines 2.4GHz + 5GHz into a stronger, more stable signal
• Enhanced reliability in crowded wireless environments

DFS Support

• Access to additional frequency bands for improved flexibility
• Optimised for use in regulated regions

Streaming & Workflow Integration

Flexible Streaming Options

• Supports UVC and RTMP streaming
• Up to 4K60 capture (UVC) / 1080p60 (RTMP)
• Plug-and-play for live production and remote workflows

Pyro Ecosystem Compatibility

• Works with Pyro H and VCore (only under broadcast mode).
• Full Compatible with Pyro S, Pyro 7, Pyro 5
• Easily expand or integrate into existing setups

Professional Monitoring Tools

Freeze Frame Function

• Automatically holds last frame during signal loss
• Option to display custom logo/image

Adaptive Output Resolution

• Automatically adjusts output to match display devices
• Ensures compatibility across mixed setups

Connectivity

• HDMI & SDI input/output
• Supports fractional frame rates
• 4K60 HDMI loop-out for local monitoring

Why Choose Pyro Ultra?

• Unlimited receiver connectivity
• True 4K60 transmission
• Ultra-low latency performance
• Long-range, stable wireless system
• Seamless ecosystem integration

Hollyland Pyro Ultra – Specifications

System Overview

• Configuration: 1 Transmitter + 1 Receiver
• Transmission Range: Up to 4,900 ft (1.5 km) LOS
• Latency: As low as 20 ms
• Frequency Band: 2.4GHz & 5GHz (Dual-Band)
• Bitrate: Up to 12 Mbps
• Streaming: UVC / RTMP supported
• Wireless Stability: Auto Frequency Hopping
• Channel Scan: Supported on receiver

Monitoring Capacity

• Non-Broadcast Mode:
  • 1 Transmitter → 2 Mobile Apps + 4 Receivers
• Broadcast Mode:
  • 1 Transmitter → Unlimited Receivers

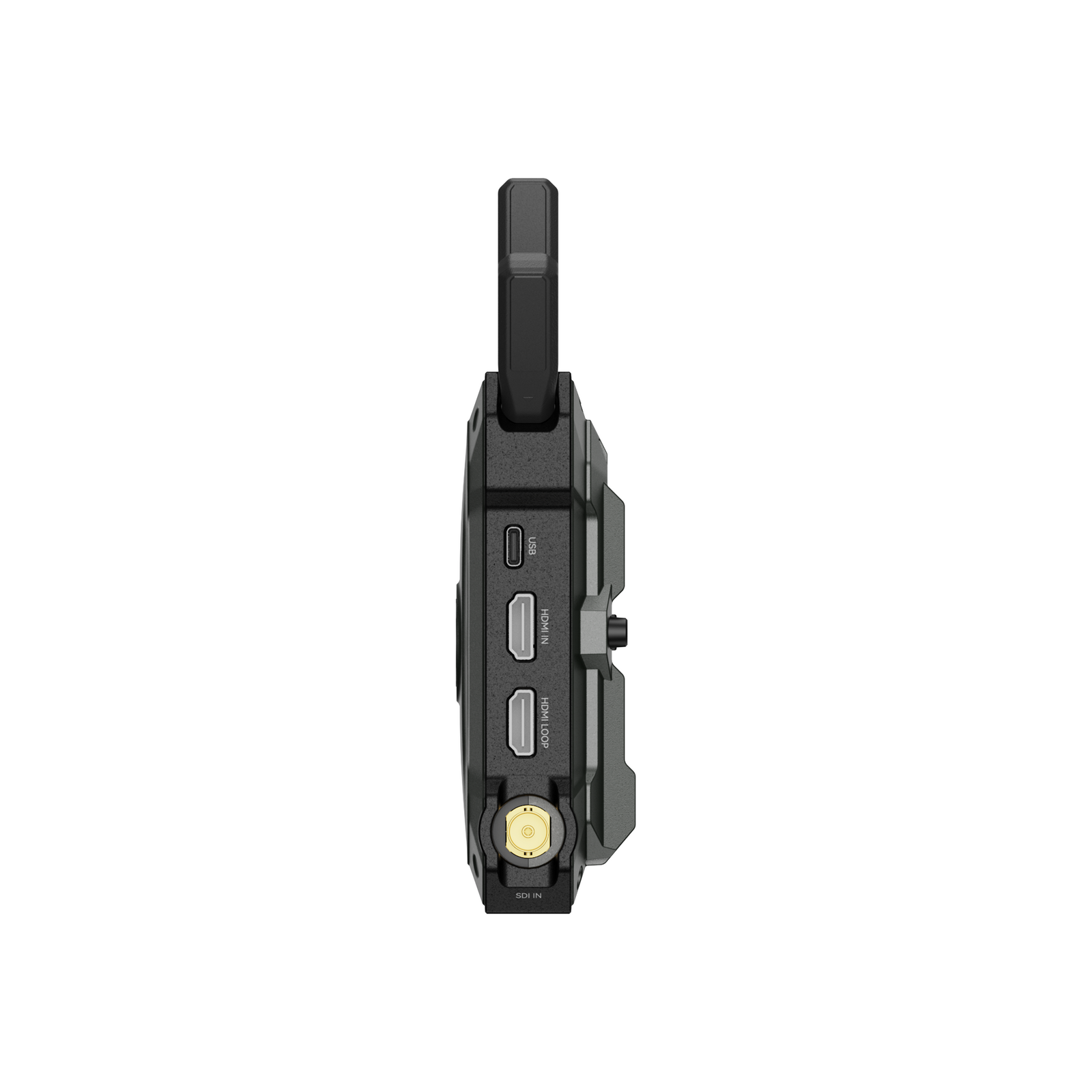

Transmitter Interfaces

• HDMI Input ×1
• HDMI Loop Out ×1
• 3G SDI Input ×1
• USB-C (Type-C) ×1

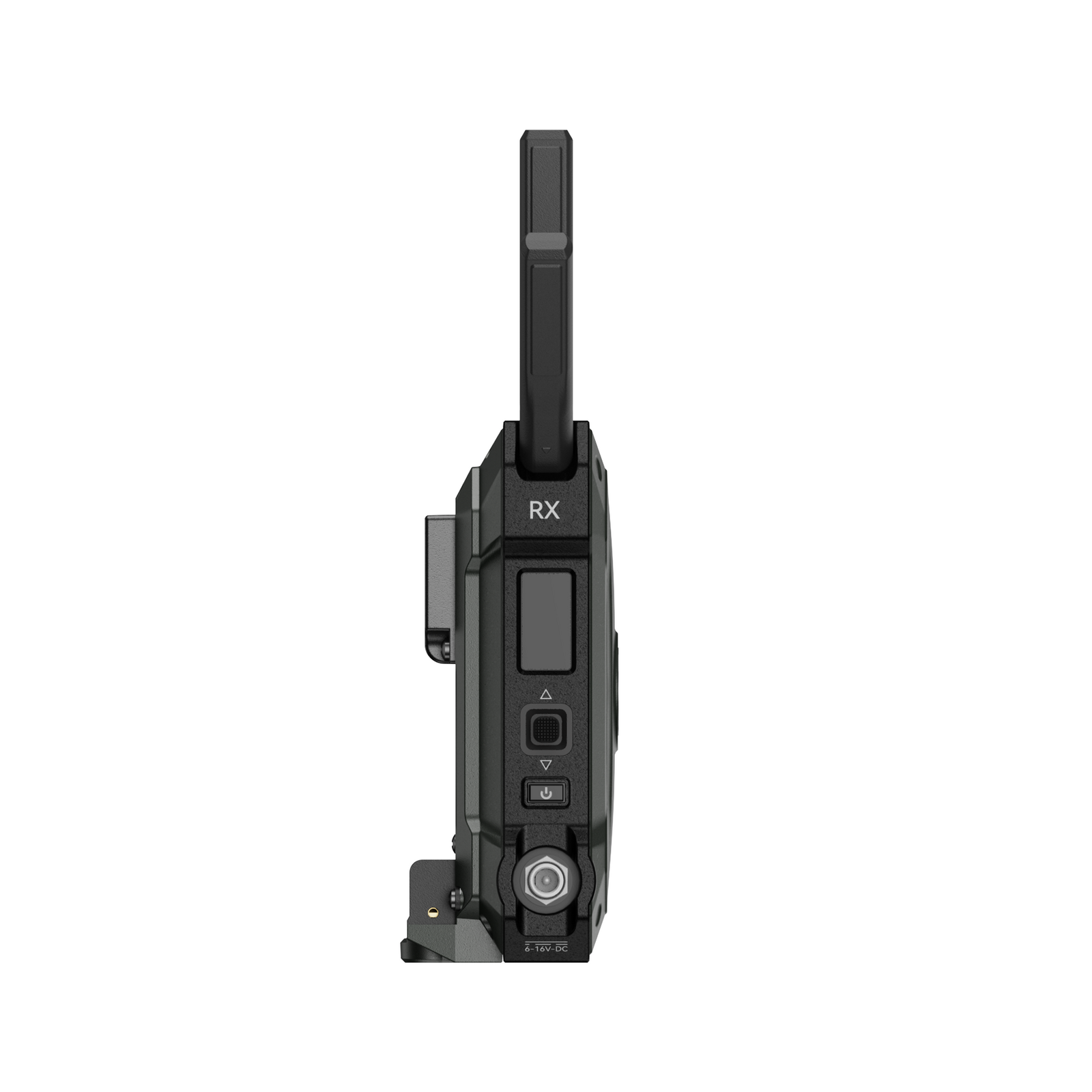

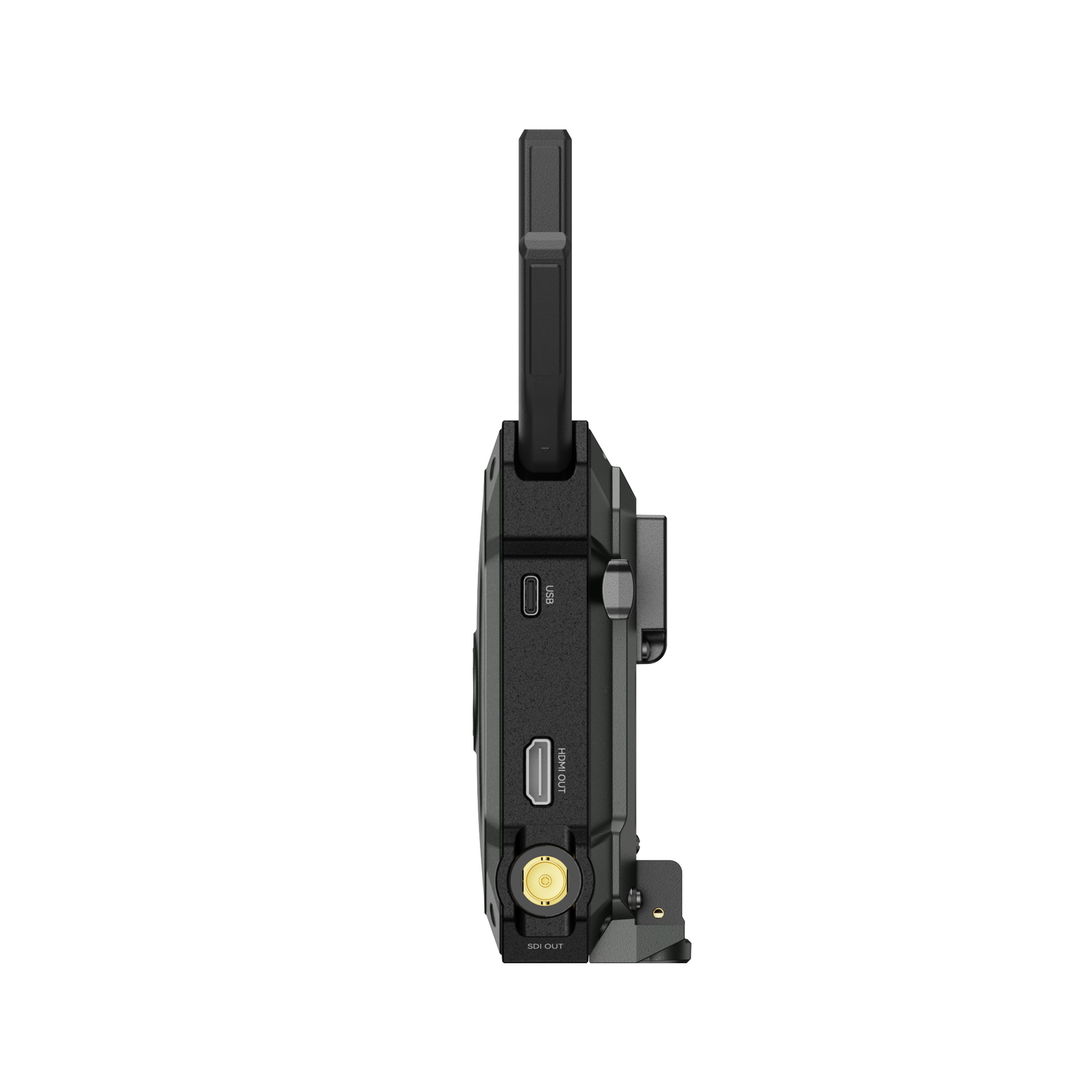

Receiver Interfaces

• HDMI Output ×1
• 3G SDI Output ×1
• USB-C (Type-C) ×1

Power Options

• DC Input: 6V–16V
• NP-F Battery Compatible
• V-Mount Battery Compatible

Video Input Formats (Transmitter)

HDMI Input

• 720p: 50 / 59.94 / 60
• 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
• 4K (3840×2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60

3G SDI Input

• 720p: 50 / 59.94 / 60
• 1080i: 50 / 59.94 / 60
• 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60

Video Output Formats (Receiver)

HDMI Output

• 720p: 50 / 59.94 / 60
• 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
• 4K (3840×2160): 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60

3G SDI Output

• 720p: 50 / 59.94 / 60
• 1080i: 50 / 59.94 / 60
• 1080p: 23.98 / 24 / 25 / 29.97 / 30 / 50 / 60

Key Highlights

• True 4K60 wireless transmission
• Ultra-low latency performance
• Long-range, stable signal
• Flexible multi-device monitoring
• Professional HDMI & SDI connectivity

What's in the box:

1 x Hollyland Pyro Ultra Transmitter

1 x Hollyland Pyro Ultra Receiver

8 x Hollyland Pyro Ultra Quick Install Antennas

1 x Hollyland DC Power Adaptor

1 x Hollyland USB-A to USB-Type C Convertor

1 x Hollyland 3" Magic Arm

1 x Carry Case
