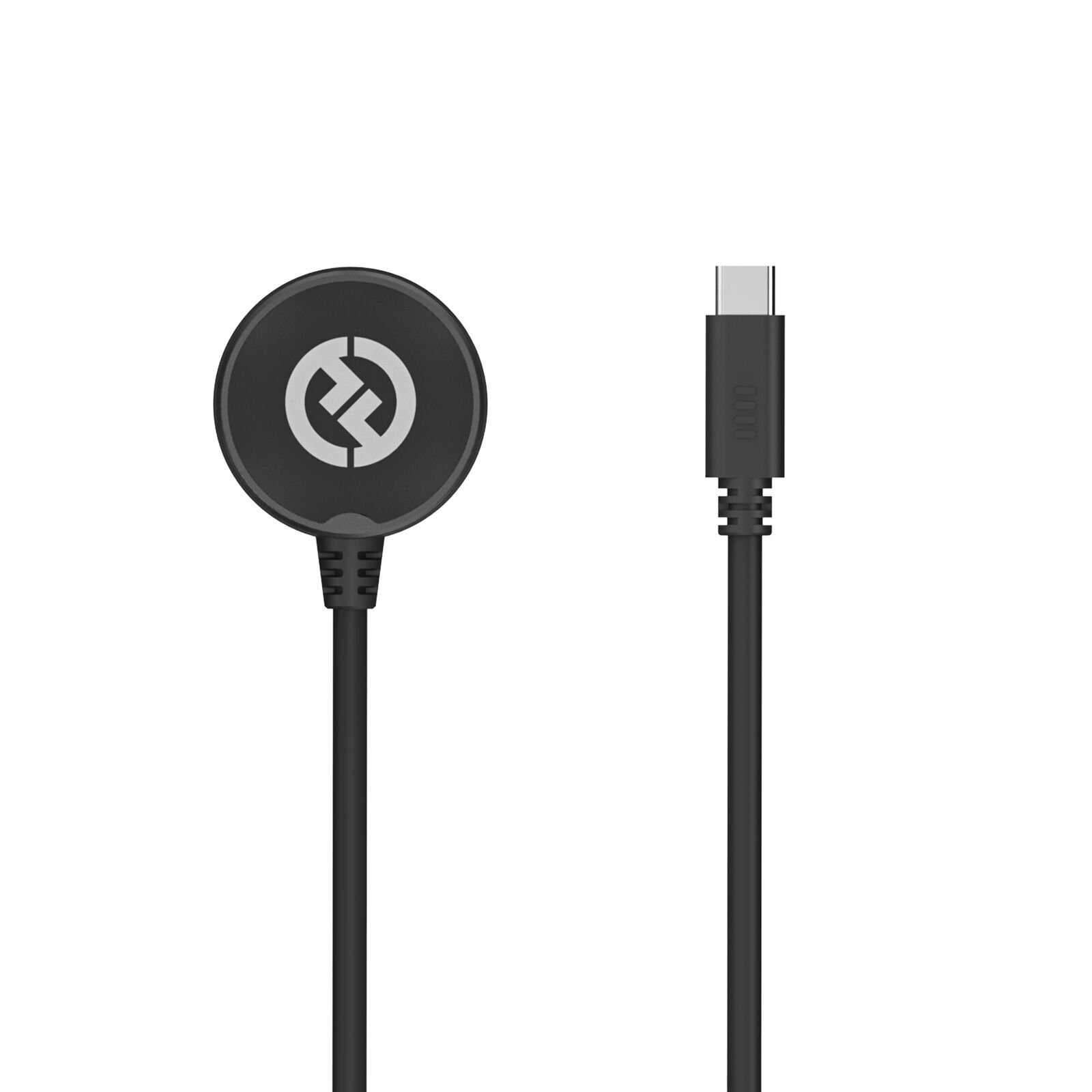

Hollyland Monitor Calibrator Overview

This device is a professional color calibration tool designed for use with Hollyland monitors to ensure accurate color reproduction.

Supported Standards

• Color Gamuts: Rec.709, DCI-P3, and Rec.2020

• White Point: D65 (standard daylight white balance)

• Luminance Range: 0–10000 nits

• Color Accuracy: ΔE (Delta E) < 2

System Requirements

• Only working with Pyro 5 or 7 transceiver monitors.

• Connects to monitor via USB-Type C port .

Operation Guide

1. Connect the Calibrator

   • Plug the calibrator into the monitor’s USB-Type C Port.

   • Wait for the device to be recognized by the software.

2. Calibration Process

   • The process typically takes 3–5 minutes.

   • Follow the on-screen instructions to measure grayscale, color gamut, and gamma response.

   • Adjustments are applied automatically once the measurements stabilize.

3. Verification

   • Run a post-calibration verification to confirm ΔE < 2.

   • Save and apply the calibration profile to your monitor.

Maintenance

• Keep the lens area of the calibrator clean and free of dust.

• Store in a dry environment when not in use.

• Recalibrate your monitor every 3–6 months for best performance.
