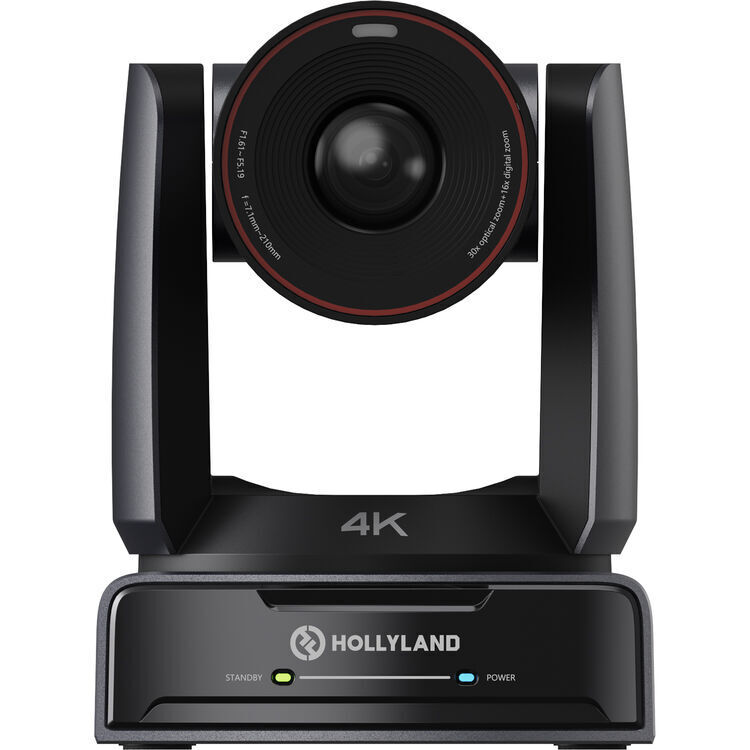

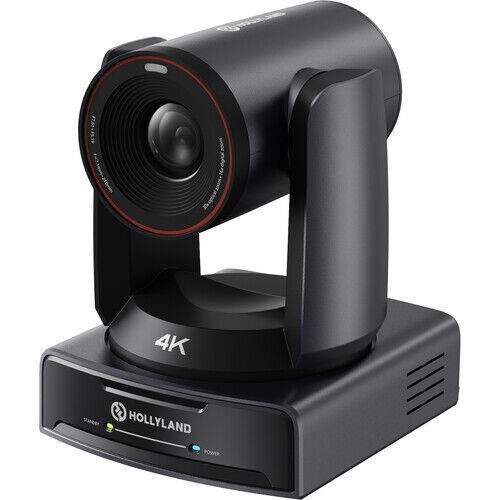

The Hollyland Astra P1 is a professional-grade PTZ camera designed for live production, houses of worship, education, corporate events, sports coverage, and conference environments. Featuring a UHD 4K imaging system, powerful 30x optical zoom, AI-powered auto tracking, and NDI®|HX3 support, the Astra P1 delivers high-quality video and intelligent operation for demanding production workflows.

Equipped with face-detection auto exposure and advanced AI tracking technology, the camera automatically keeps presenters and performers perfectly framed, reducing the need for manual camera operation. With flexible connectivity including HDMI, 3G-SDI, USB, and IP streaming, the Astra P1 easily integrates into modern production and streaming systems.

Key Features

• UHD 4K60 video output
• Powerful 30x optical zoom lens
• AI Auto Tracking technology
• Face Detection Auto Exposure (AE)
• NDI®|HX3 support for IP production workflows
• HDMI, 3G-SDI, USB and Ethernet outputs
• Supports H.264, H.265 and MJPEG encoding
• PTZ control via RS232, RS485 and IP
• Up to 255 preset camera positions
• Optional PTZ controller support
• PoE+ capable for simplified installation
• Backed by a 5-Year Warranty

Imaging System

• Sensor: 1/1.8" High-Quality CMOS
• Effective Resolution: 8.42MP (16:9)
• Optical Zoom: 30x (7.1mm – 210mm)
• Digital Zoom: 16x
• Aperture Range: f/1.6 – f/5.19
• Minimum Illumination: 0.5 Lux
• Signal-to-Noise Ratio: ≥55dB

Video Output Formats

HDMI

• 2160p up to 60fps
• 1080p up to 60fps
• 1080i up to 60fps
• 720p up to 60fps

3G-SDI

• 1080p up to 60fps
• 1080i up to 60fps
• 720p up to 60fps

PTZ Performance

• Pan Range: ±170°
• Tilt Range: -30° to +90°
• Pan Speed: 1.7°/s to 100°/s
• Tilt Speed: 1.7°/s to 69.9°/s
• Presets: 255 positions
• Preset Accuracy: 0.1°

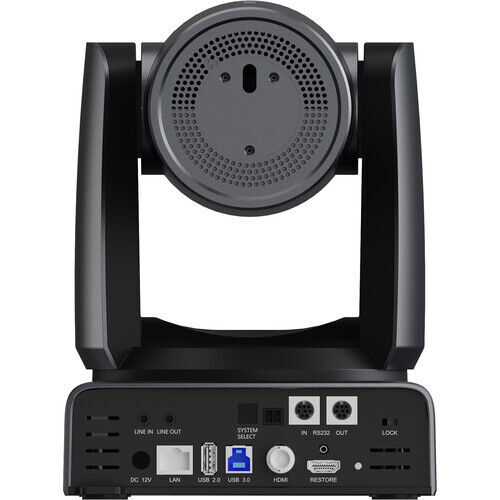

Connectivity

Video Interfaces

• 1 × HDMI 2.0
• 1 × 3G-SDI
• 1 × USB 3.0 Type-B
• 1 × USB 2.0 Type-A

Audio Interfaces

• 1 × 3.5mm Line In
• 1 × 3.5mm Line Out

Control Interfaces

• RS485 (2-pin Phoenix Terminal)
• RS232 (8-pin Mini-DIN)

Network

• RJ45 Gigabit Ethernet (10/100/1000 Mbps)

Streaming & Network Features

• Video Compression: H.264 / H.265 / MJPEG
• Main Stream Resolution:
  • Up to 3840 × 2160
• Sub Stream Resolution:
  • Up to 720 × 480
• Supported Protocols:
  • NDI®|HX3
  • RTSP
  • RTMP
  • SRT
  • HTTP
  • TCP/IP
  • Multicast
  • DVR and more

Physical Specifications

• Power Input: DC 12V / PoE+
• Power Consumption: 18W (Max)
• Operating Temperature: 0°C to 40°C
• Storage Temperature: -40°C to 60°C
• Dimensions: 169 × 188 × 226mm
• Weight: Approx. 2.3kg

Ideal Applications

• Houses of Worship
• Live Events
• Corporate Presentations
• Education & Lecture Capture
• Conference Rooms
• Sports Production
• Broadcast Studios
• Hybrid & Online Streaming

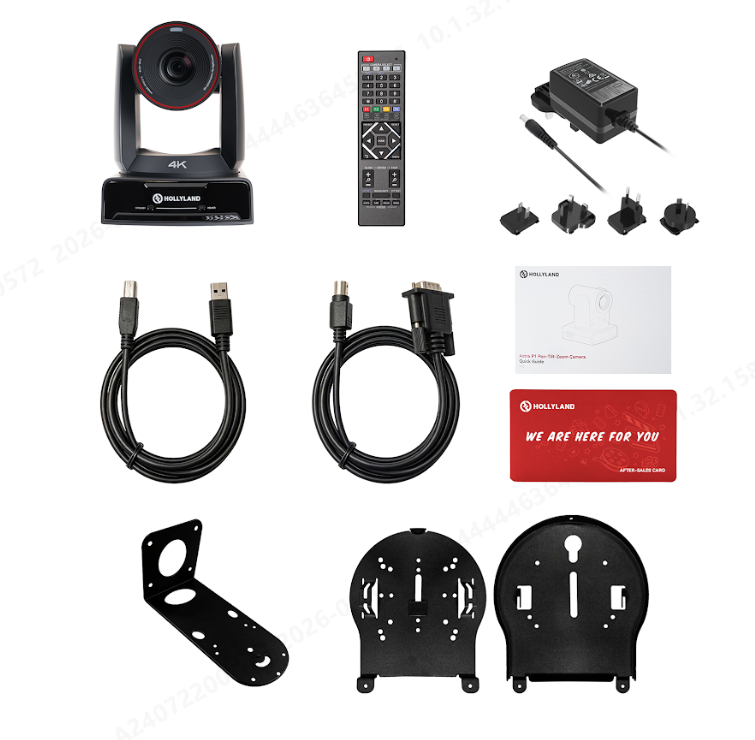

What's in the box:

1 x Hollyland Astra-P1 PTZ Camera (NDI Activated)
1 x Remote Controller
1 x Power Adapter
1 x USB-B to USB-A Cable
1 x RS232 Cable
1 x Wall Mount Bracket
1 x Ceiling Mount Bracket
